Hello world

Public sample

As a simple extension sample, let's take a look at an implementation example of an extension that displays a message with a button on the ribbon. This sample is available on GitHub.

External link: hello-world

Extension placement

Copy the hello-world folder that contains the manifest.json file directly under the following extensions folder.

{User's home path}\AppData\Local\DENSO CREATE\Next Design\extensions\

Example user home path: C:\Users\user-name

If you want to create this extension yourself, follow the steps below.

• Create a hello-world folder directly under the above extensions folder.
• Create a images folder in the hello-world folder and prepare a About.png that will be the button image for the ribbon (32 x 32 images are recommended).
• Create manifest.json and main.cs in the hello-world folder.

manifest.json

This manifest defines one button on the ribbon and one command to execute on the button.

{
  //Extension definition
  "name": "Hello World",
  "version": "1.1.0",
  "publisher": "DENSO CREATE INC.",
  "license": "Conforms to the Next Design License Agreement. Copyright (C) 2019 DENSO CREATE INC. All rights reserved.",

  "main": "main.cs", //Specify a C# script as the entry point.
  "lifecycle": "application", //Specify the application lifecycle as the lifecycle.

  //Extension point definition
  "extensionPoints": {
    //Ribbon
    "ribbon": {
      "tabs": [
        //Define the ribbon tab to add for the extension.
        {
          "id": "HelloWorld.MainTab",
          "label": "Hello World",
          "orderBefore": "System.View",
          "groups": [
            //Define a group that separates the ribbon tabs.
            {
              "id": "HelloWorld.FirstGroup",
              "label": "Group 1",
              "controls": [
                //Define a Say Hello button.
                {
                  "id": "HelloWorld.SayHelloButton",
                  "type": "Button",
                  "label": "Say Hello",
                  "imageLarge": "images/About.png",
                  "command": "Command.SayHello" //Specify the id of the command defined in the command described below.
                }
              ]
            }
          ]
        }
      ]
    },

    //Command
    "commands": [
      //Define a command that calls the command handler `SayHello`.
      {
        "id": "Command.SayHello",
        "execFunc": "SayHello" //Specifies the public function to be implemented at the entry point.
      }
    ]
  }
}

main.cs

This C# script, specified as the entry point in the manifest, implements a simple command handler to display the message.

//Command handler public function
public void SayHello (ICommandContext context, ICommandParams paramemters)
{
    App.Window.UI.ShowInformationDialog ("Hello!", "Hello World");
}

Execute

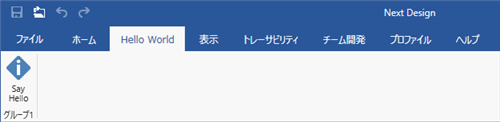

When you start Next Design, you will see the ribbon as shown below.

When you click the Say Hello button, the following message will be displayed.
